Description, Features & Specifications

Description

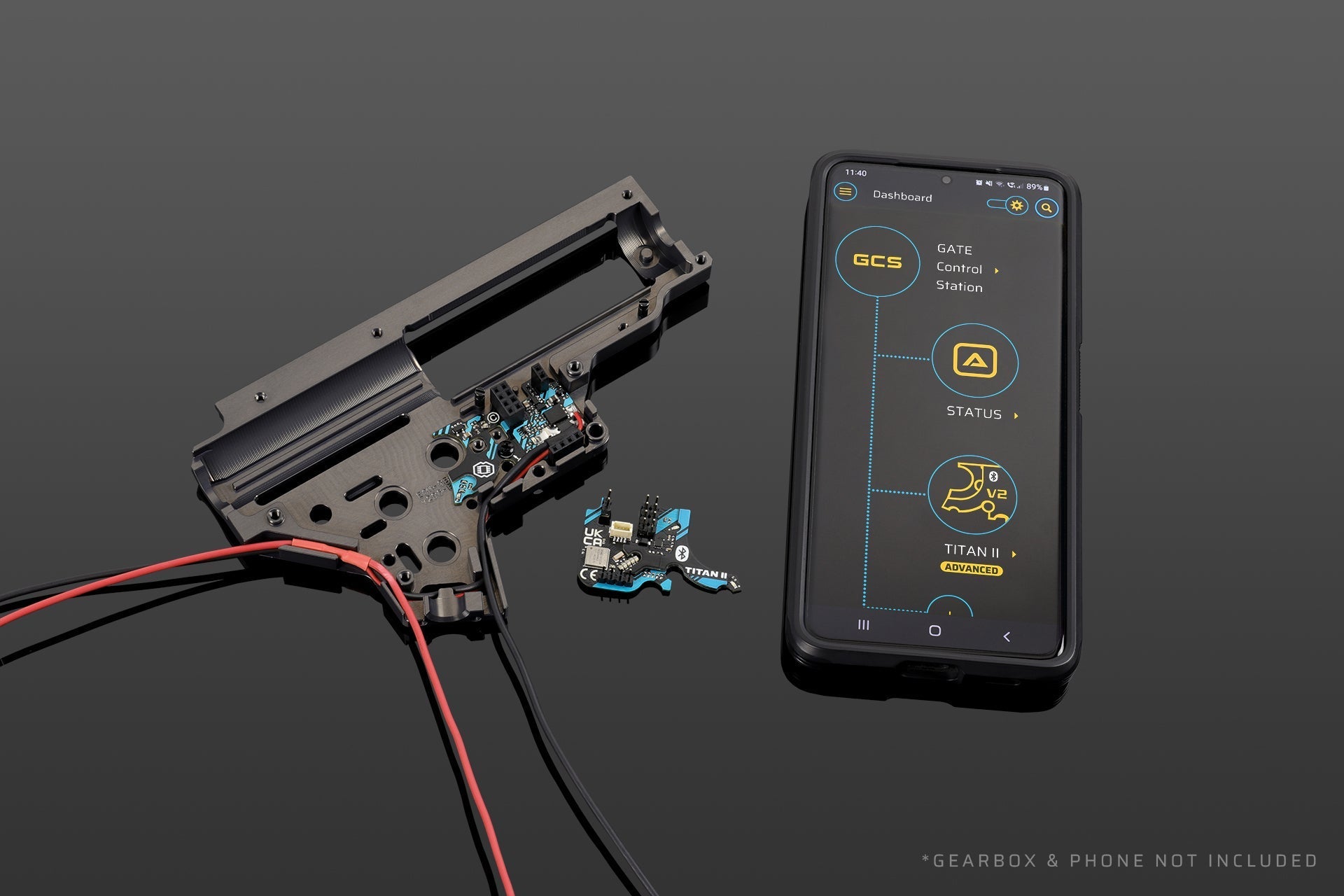

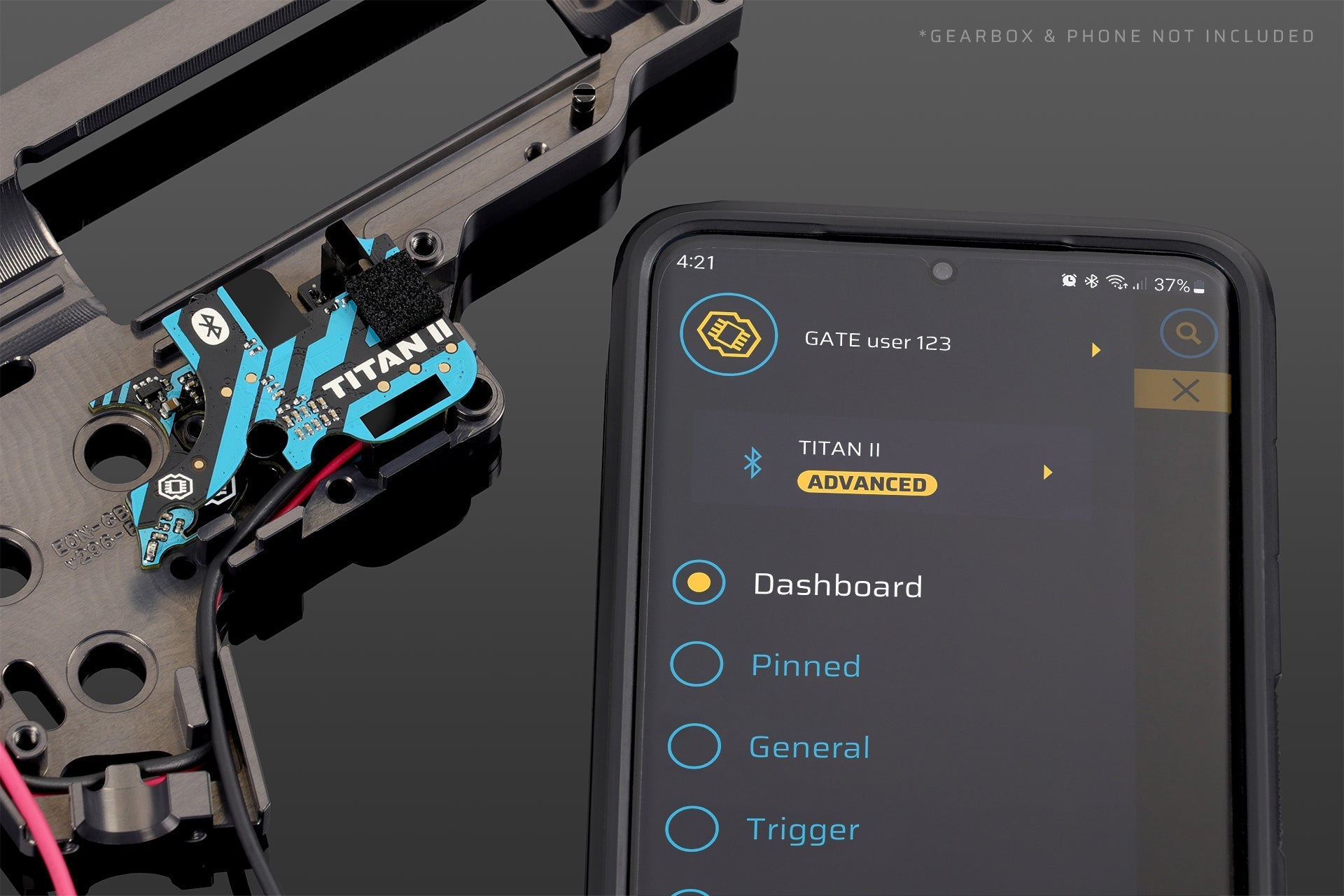

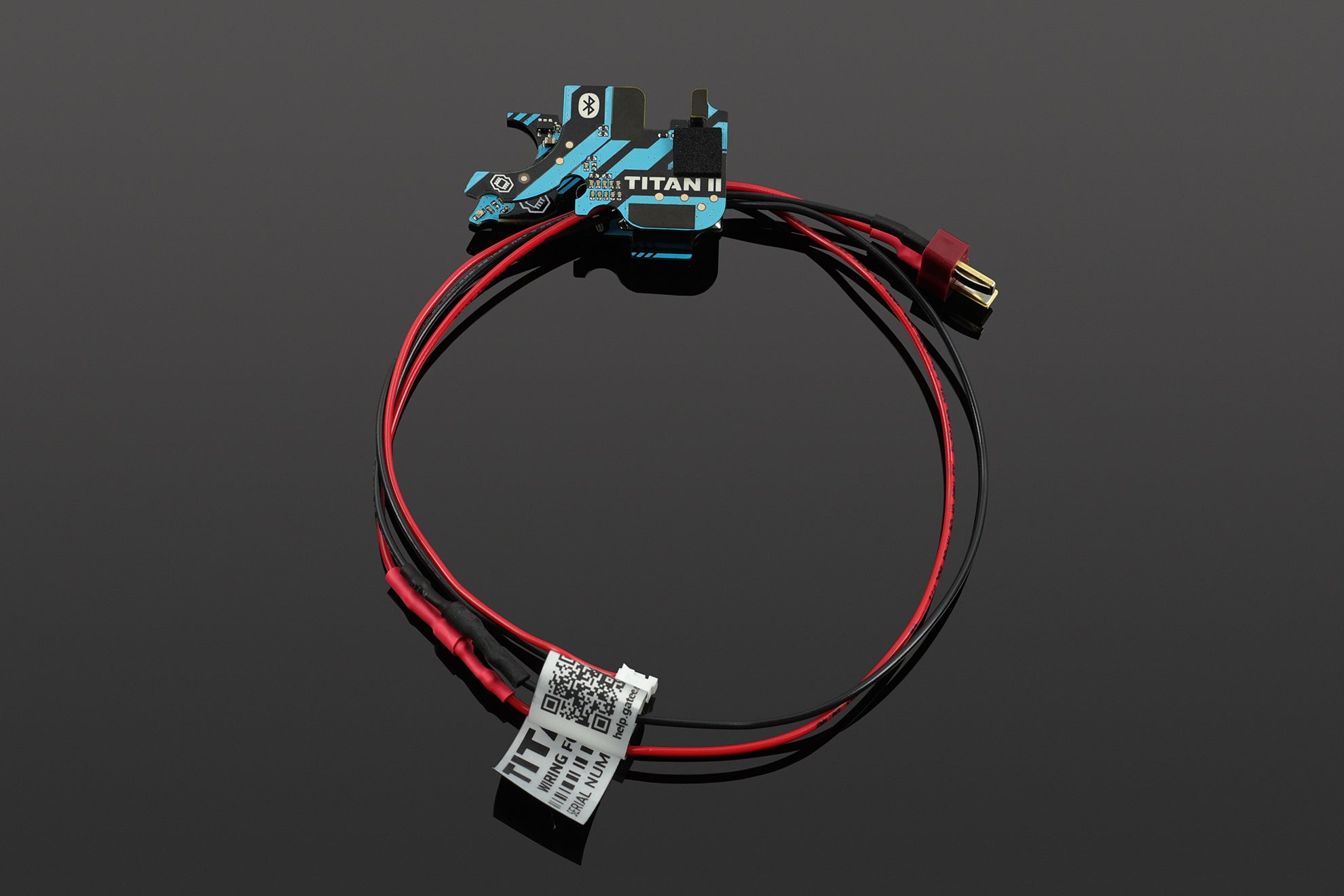

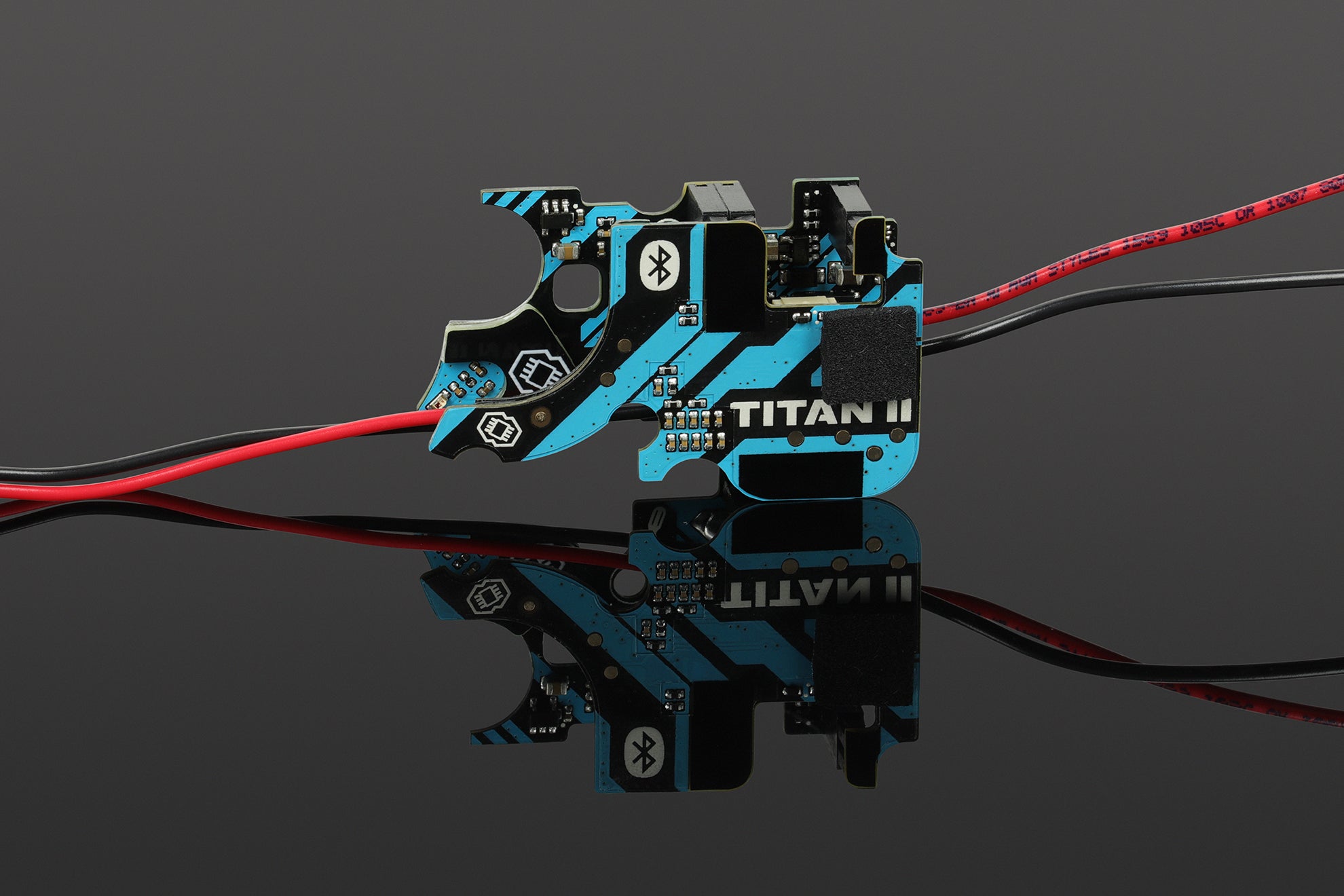

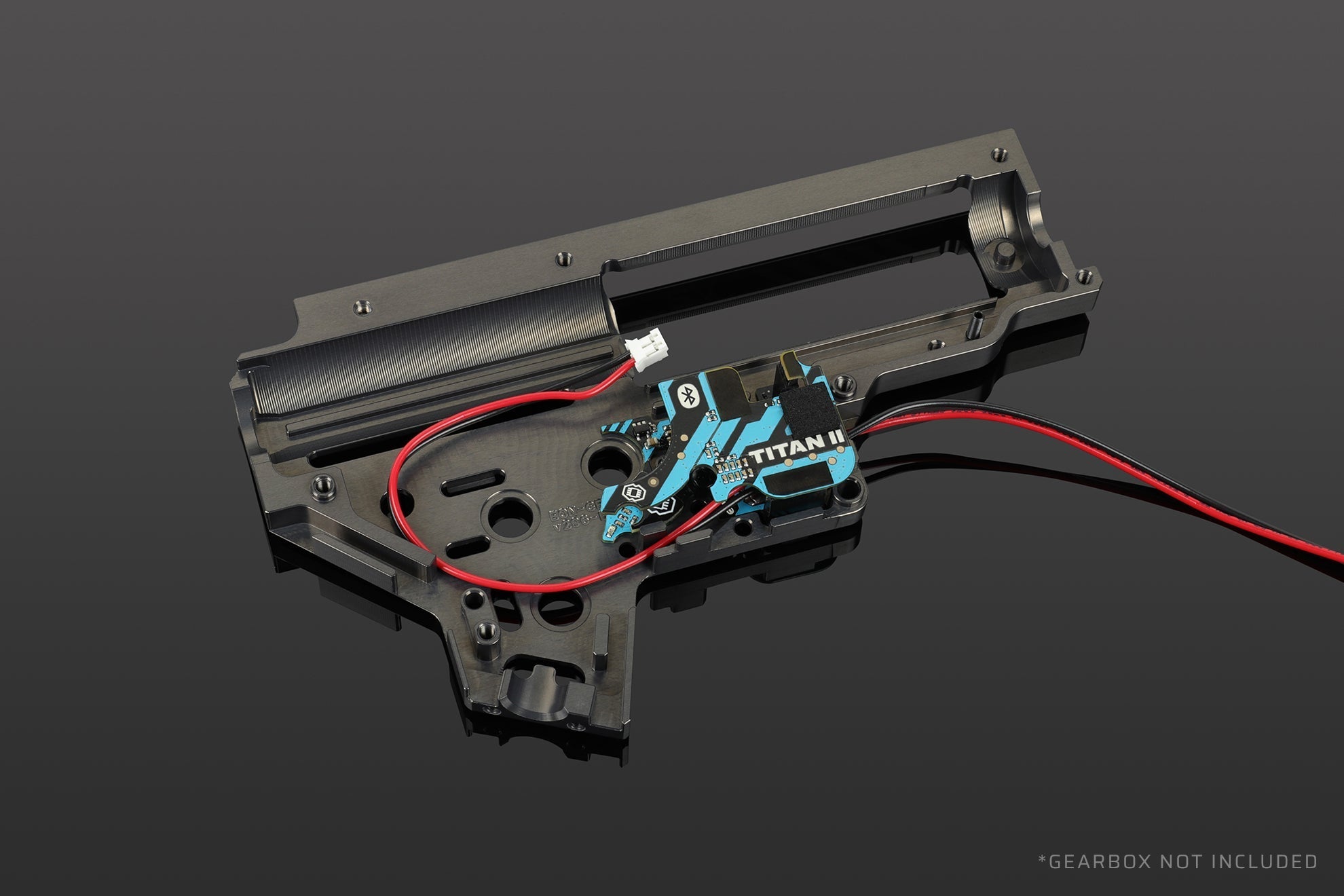

The GATE TITAN II Bluetooth Expert for V2 Gearbox is a flagship electronic trigger unit for V2 airsoft builds. Built-in Bluetooth 5.2 gives direct access to TITAN settings, AEG telemetry, diagnostics, firmware updates, and GATE Control Station tuning without needing a separate USB-Link for normal setup.

This listing includes AEG and HPA Expert variants with front-wired and rear-wired configurations. Choose the version that matches your gearbox wiring direction and whether the build is an AEG or HPA setup.

Key Features

  • Bluetooth 5.2 Low Energy connection for GATE Control Station

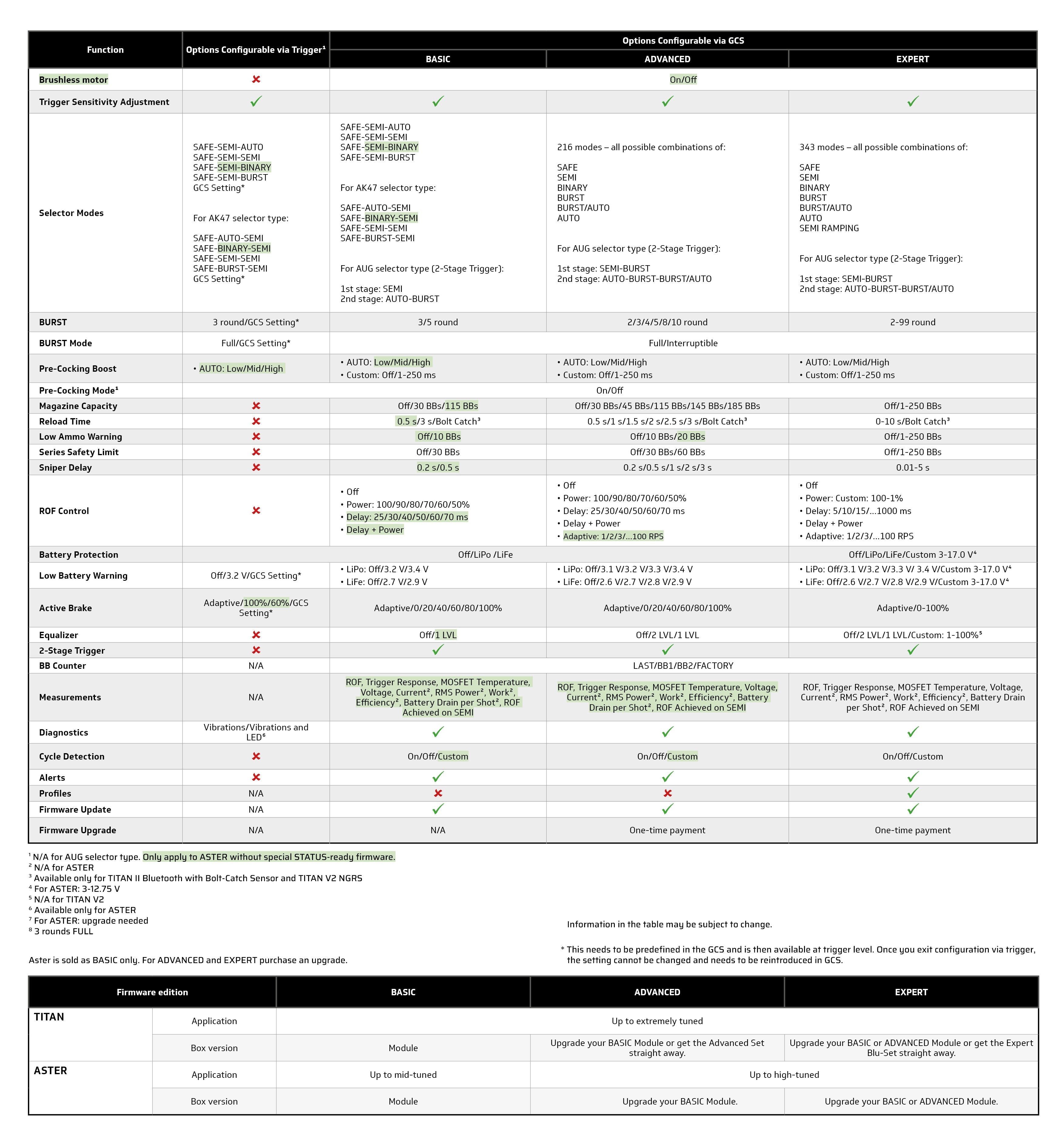

  • Expert firmware feature set
  • Designed for V2 gearbox layouts
  • AEG and HPA versions available
  • Front-wired and rear-wired options
  • Optical trigger sensor with extremely fine trigger sensitivity adjustment
  • Gear sensor for precise cycle control
  • Telemetry, diagnostics, pre-cocking, active brake, and magazine/BB simulation support
  • Multifunctional ports for supported accessories and HPA connections
  • Supports brushless motors in compatible AEG setups

Version Guide

AEG Front / Expert For AEG V2 gearbox builds with front wiring.
AEG Rear / Expert For AEG V2 gearbox builds with rear wiring.
HPA Front / Expert For supported HPA V2 gearbox builds with front wiring.
HPA Rear / Expert For supported HPA V2 gearbox builds with rear wiring.

Compatibility Notes

This product is intended for V2 gearbox platforms. Fitment depends on gearbox shell, selector plate, trigger setup, wiring route, battery connector, motor, HPA engine type, and available installation space. Do not assume fitment based on replica brand alone.

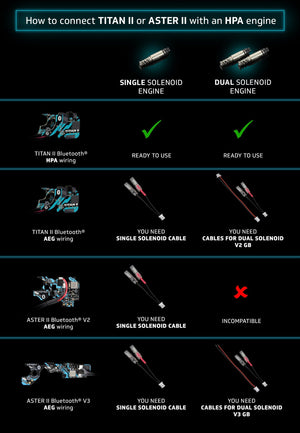

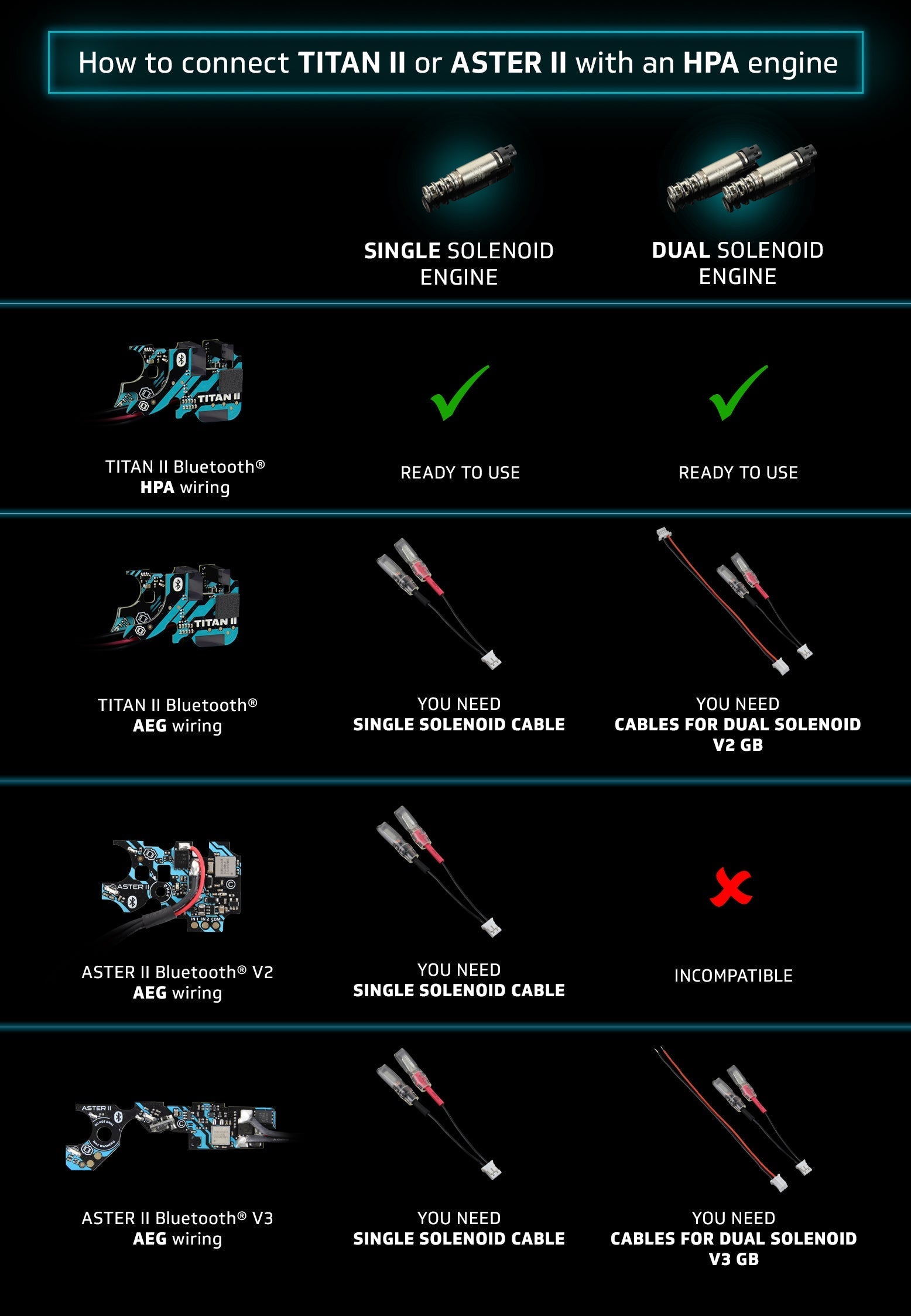

For HPA builds, confirm whether your engine requires a single-solenoid or dual-solenoid connection and choose the correct TITAN II version or accessory cable. Professional installation is recommended.

Specs

Brand GATE
Model TITAN II Bluetooth Expert for V2 GB
Product Type Electronic Trigger Unit / MOSFET
Gearbox Compatibility V2 gearbox layouts
Connectivity Bluetooth 5.2 Low Energy
Supply Voltage Range 3.75 - 17 VDC
Rated Current 30 A
Current Consumption 27 mA
Low Power Mode 100 µA
Dimensions 47.2 x 28.9 x 14.5 mm
ETU Weight 28.2g / 1.0 oz
Operating Temperature -15°C to +50°C

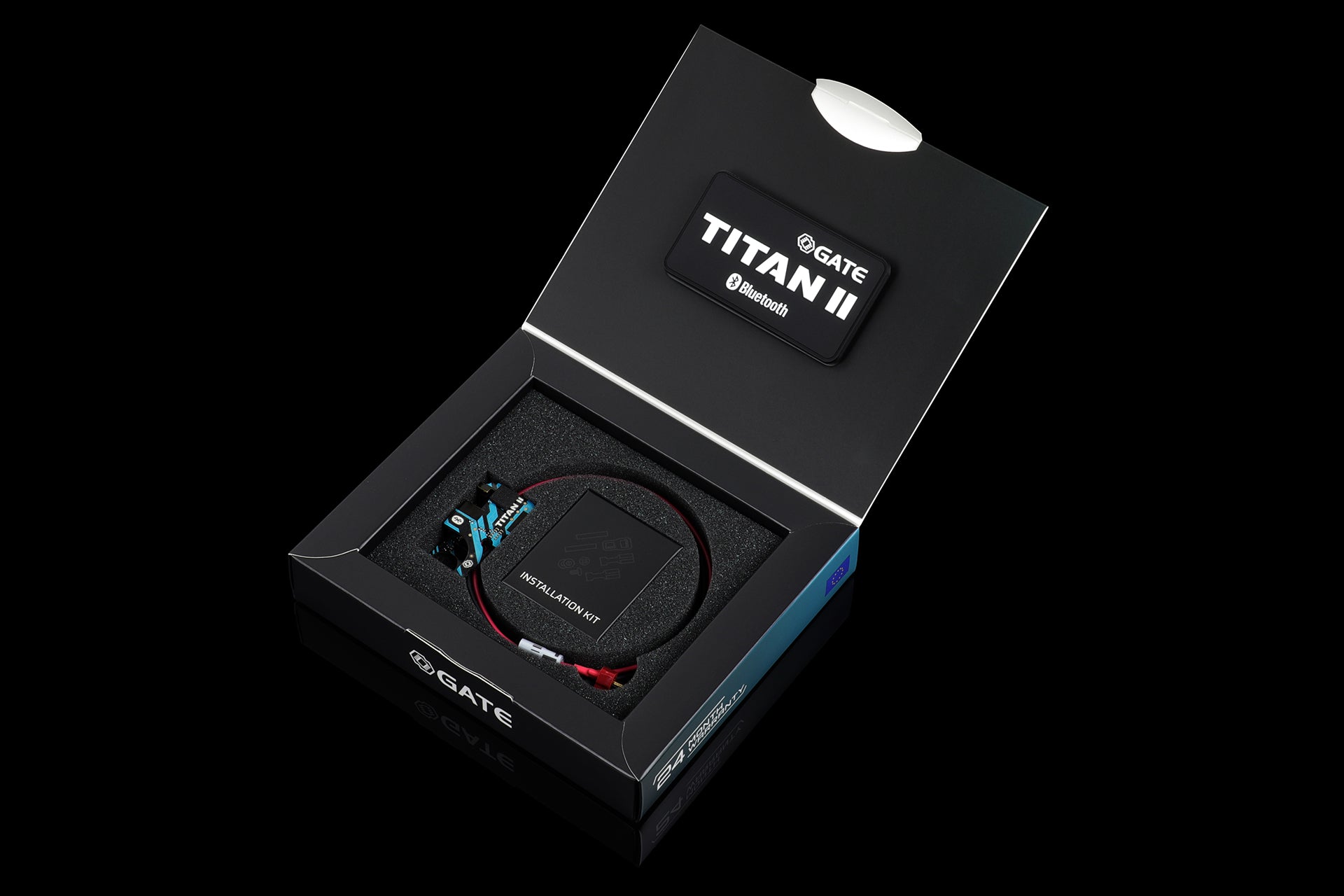

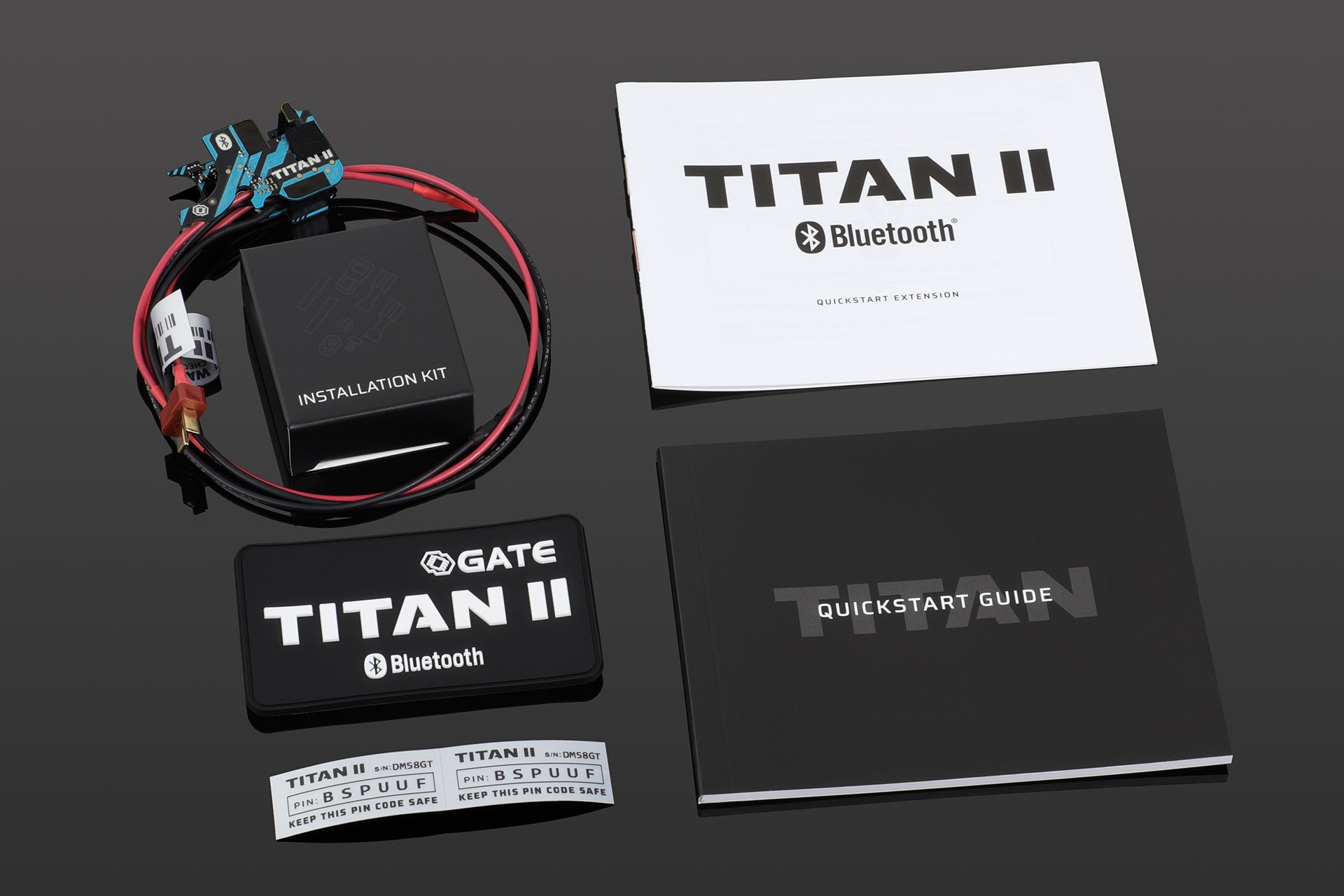

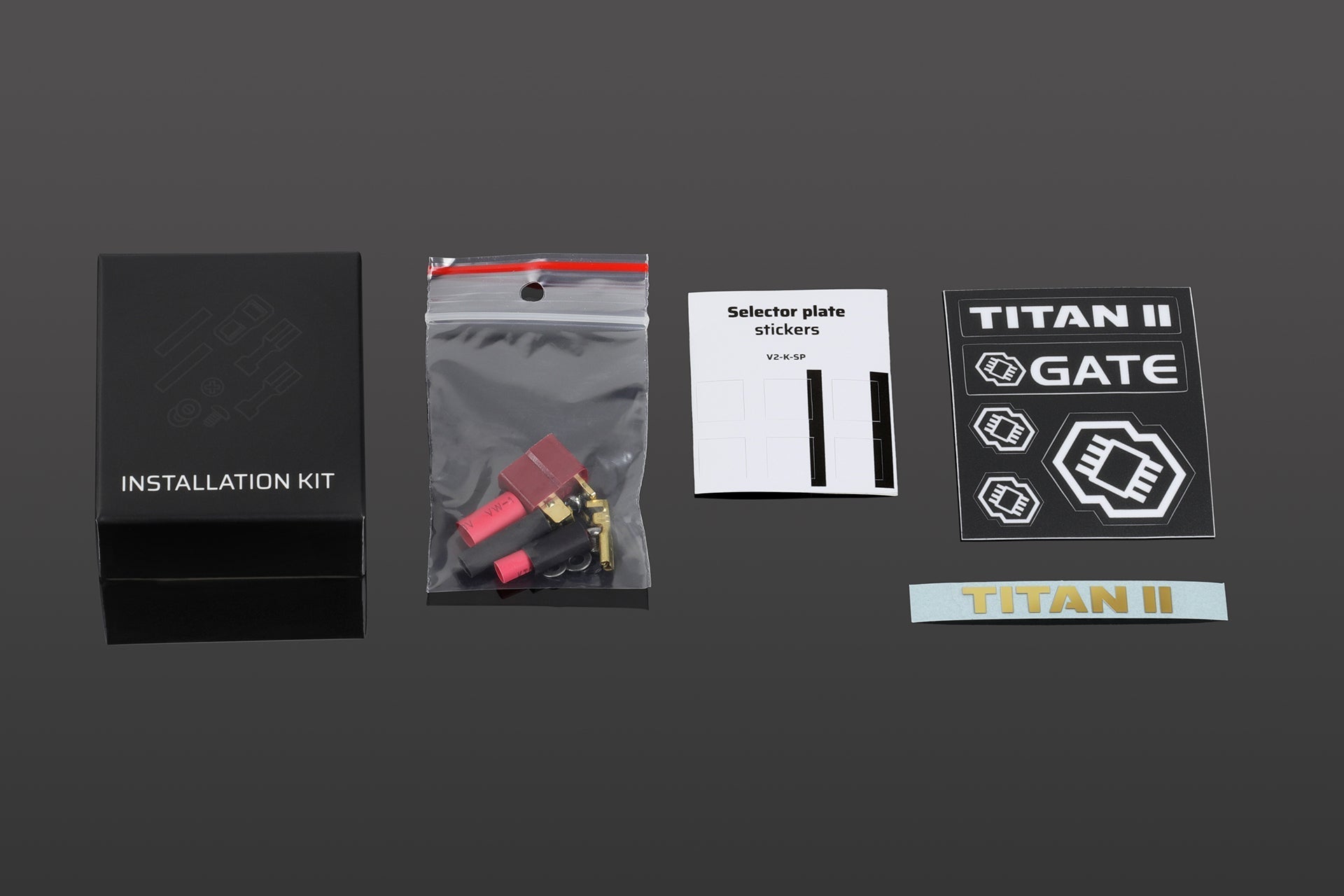

What’s Included

  • 1 GATE TITAN II Bluetooth Expert unit in the selected configuration

Battery, motor, gearbox, HPA engine, replica, tools, and optional accessory cables are not confirmed as included unless shown on the selected variant packaging or product materials.

Install Notes

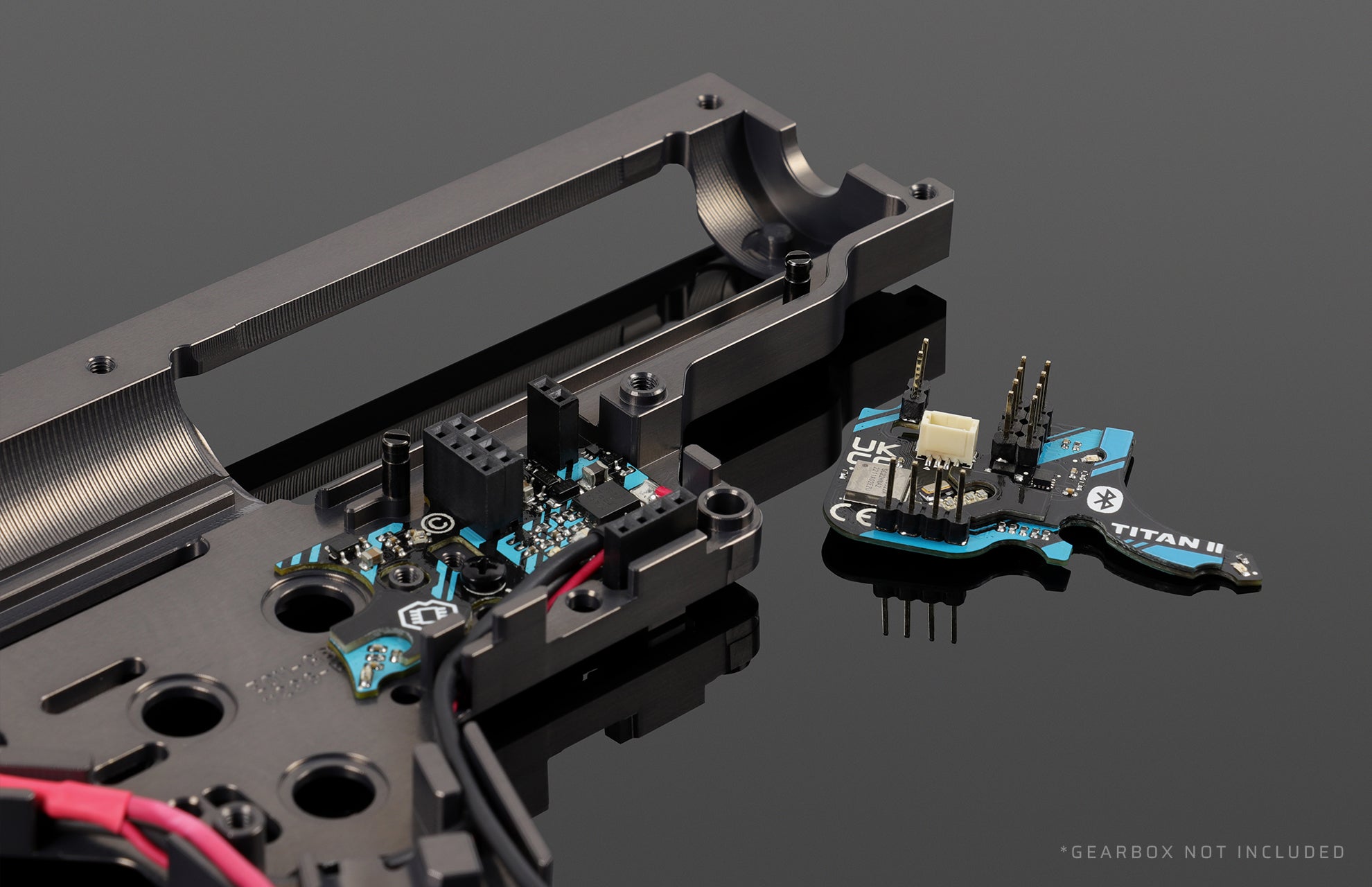

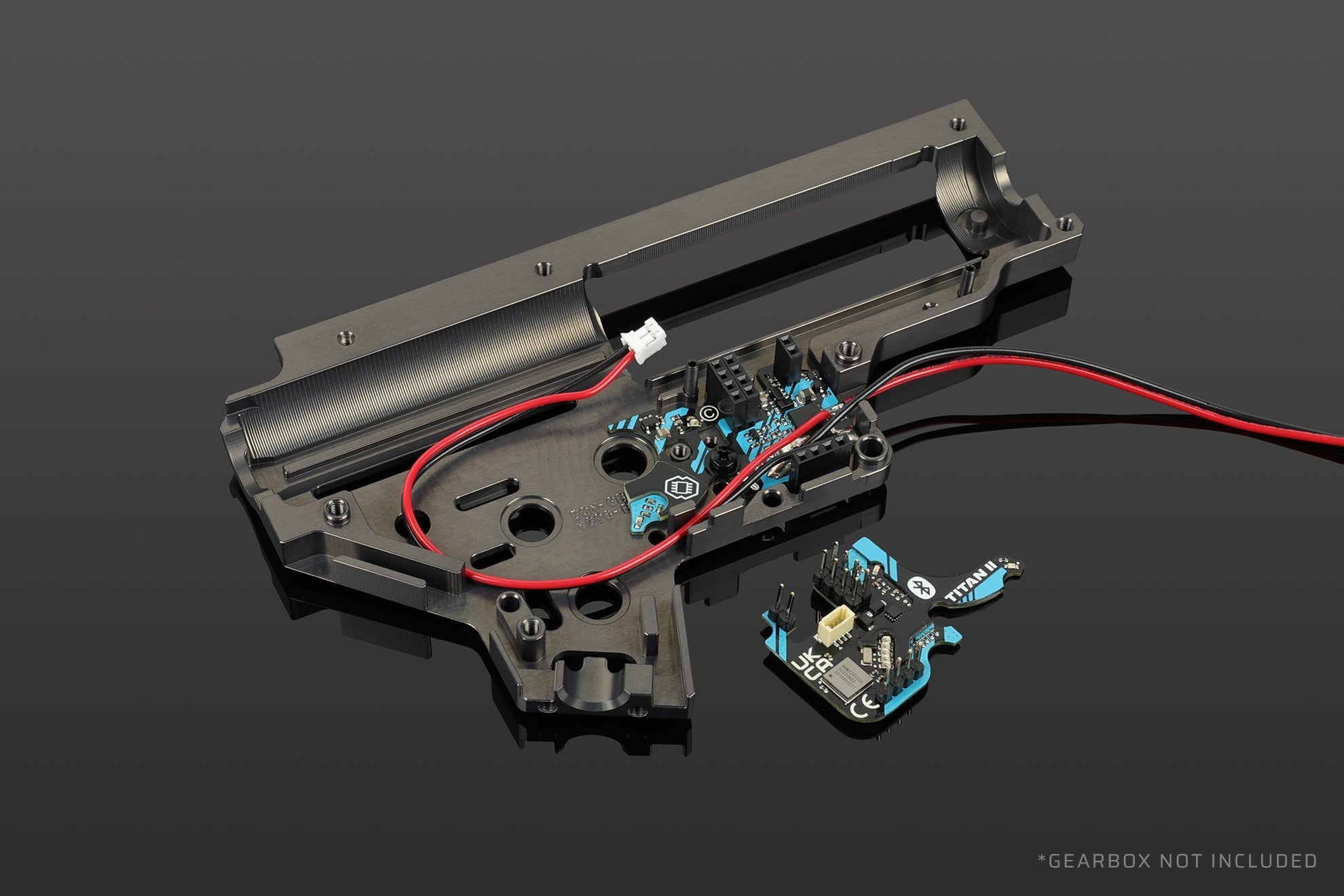

Professional installation is recommended. Verify gearbox compatibility, wiring route, connector type, trigger fitment, selector alignment, motor setup, battery condition, and GCS settings before field use.
